Taihou Kinzoku
JapaneseSHEETSheet-Type Waterstop Board
Features
・No need to prepare a separate storage location for components.

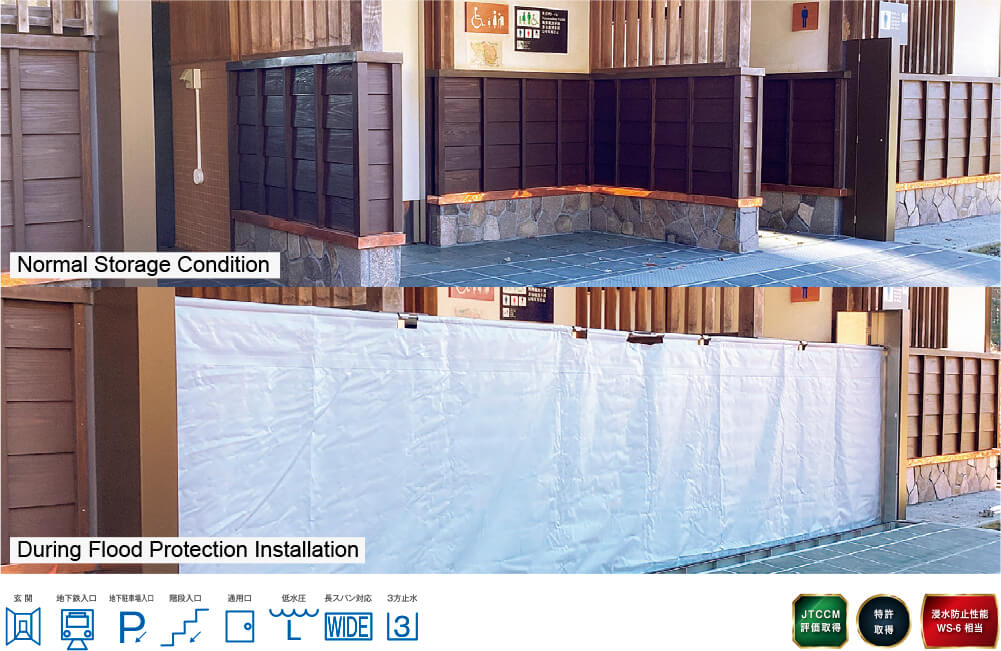

・The sheet and components are stored within the side frame and bottom frame.
・Uses highly durable flame-retardant sheet material (CSM material) also adopted for professional rubber boats.Not affected by temperature and does not harden even in winter.Even if punctured, it is resistant to tearing.
・ A drainage pipe is required.
Specifications
| Sheet | CSM rubberized fabric (CSM + nylon fiber + CR) |
|---|---|
| Side Frame / Bottom Frame | Stainless Steel |
| Reinforcement Posts / Reinforcement Bars | Stainless Steel |
| Manufacturable Size Range | Width: 400 mm and above (no upper limit) |
| Flood Prevention Performance | Equivalent to WS-6 (JTCCM Class 5 certified) |
| Operation Method | Manual |
| Installation Time | Approx. 5 minutes |
| Drainage Pipe | 50A × 2 locations (standard) |
| Options | Two-tier height specification,Stone finish (side frame / bottom frame groove cover) |
