Taihou Kinzoku
JapaneseSHEET3Panel & Sheet Type(Three-Sided Sealing)
Features
・Compared to detachable waterstop boards, storage space can be reduced.
・No bottom frame is required, reducing construction time and cost.

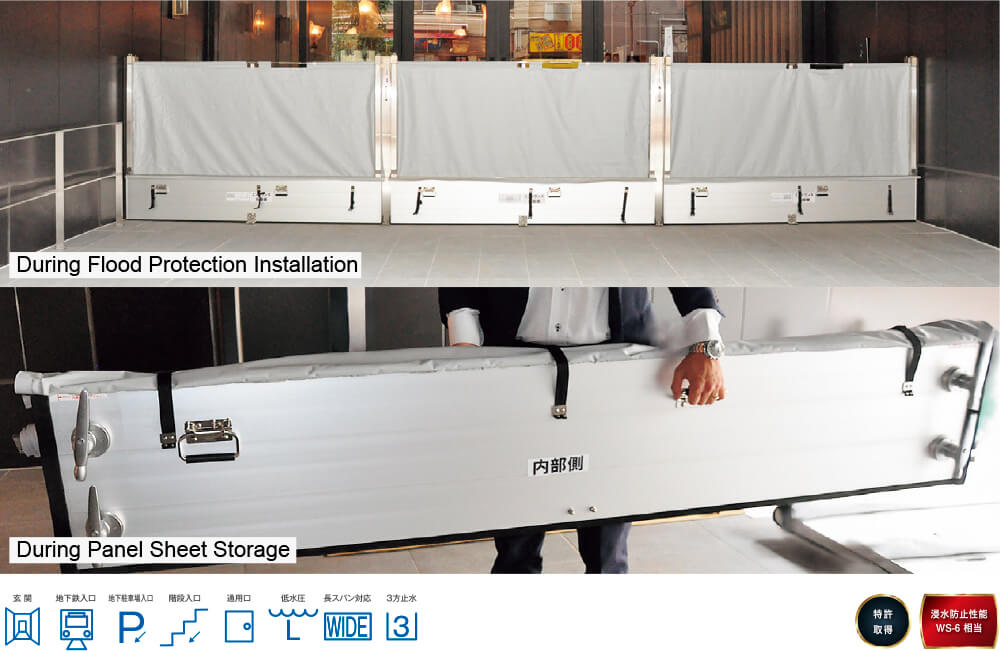

・During low flood levels, the sheet can be rolled up, allowing evacuation by stepping over the panel.After evacuation, the sheet can be quickly installed.
Specifications
| Panel | Aluminum extruded material, thickness 42.6 mm, silver finish |
|---|---|
| Sheet | CSM rubberized fabric (CSM + nylon fiber + CR) |
| Side Frame / Bottom Frame | Stainless Steel |
| Reinforcement Posts / Reinforcement Bars | Stainless Steel |
| Manufacturable Size Range | Width: 450 mm and above (no upper limit)／Height: 700 mm to 1200 mm(Custom sizes available) |
| Flood Prevention Performance | Equivalent to WS-6 (JTCCM Class 5 certified) |
| Operation Method | Manual |
| Installation Time | Approx. 5 minutes |
| Options | Storage box, hand truck, etc. |
