JapaneseSHEET4Panel & Sheet Type(Four-Sided Sealing)
Features
・Since there is no door leaf during normal times, it is suitable for locations where appearance is important.
・Compared to detachable waterstop boards, storage space can be reduced.

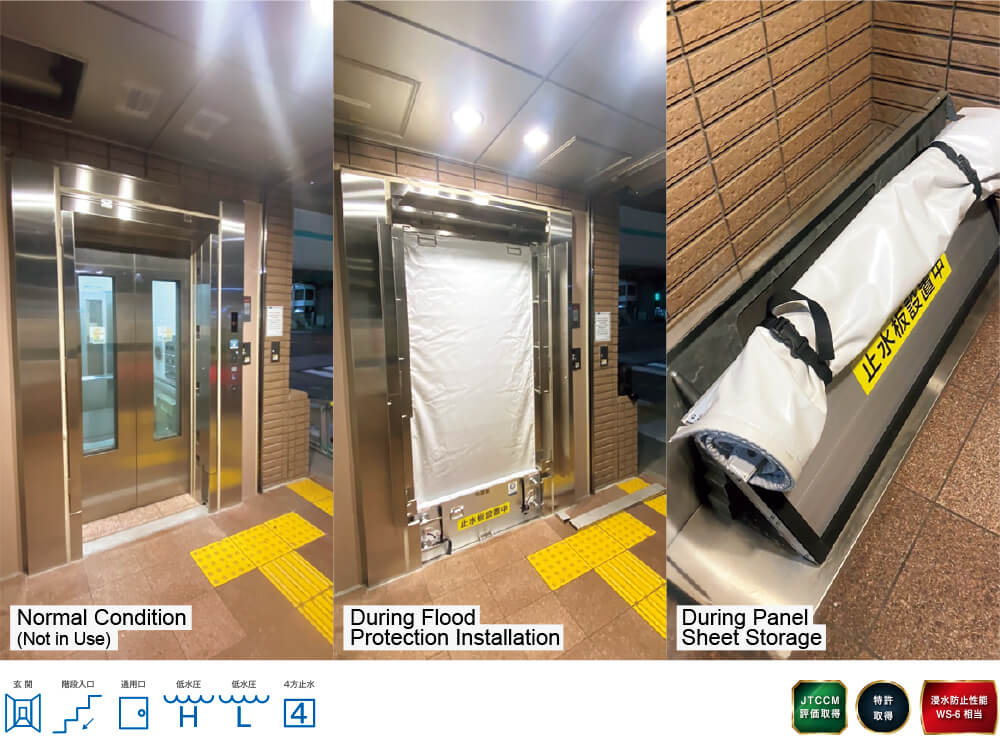

・During low flood levels, the sheet can be rolled up, allowing evacuation by stepping over the panel.After evacuation, the sheet can be quickly installed.
Specifications
| Panel | Aluminum extruded material, thickness 42.6 mm, silver finish |
|---|---|
| Sheet | ES tarpaulin (PVC on both inner and outer surfaces, polyester base fabric) |
| Side Frame Reinforcement Bar | Stainless Steel |
| Manufacturable Size Range | Stainless Steel |
| Manufacturable Size Range | Width: 600 mm to 1200 mm／Height: 700 mm to 2100 mm (Custom sizes available) |
| Flood Prevention Performance | Equivalent to WS-6 (JTCCM Class 5 certified) |
| Operation Method | Manual |
| Installation Time | Approx. 5 minutes |
| Options | Storage box, hand truck, etc. |
